Solar Battery Clearance Requirements: A Plain-English Guide for Australian Homeowners

Will a battery fit at your place? Learn the clearance rules, check your own wall, and plan with confidence.

VOLTX ENERGY

Safe Space: A Guide to Solar Battery Clearance Requirements

0:00
0:00

Will a battery fit at your place? Learn the clearance rules, check your own wall, and plan with confidence.

Thinking about adding a home battery but worried your place might not have room for one? You’re not alone. One of the first questions Aussie families ask is whether solar battery clearance requirements will rule their home out before they even get started.

Here’s the reassuring truth: clearance rules exist to keep your family and property safe, not to stop you installing a battery. Most homes can comfortably accommodate one with a bit of planning. As an Australian-owned and operated company, VoltX Energy has helped thousands of households work through exactly these questions. This guide explains what the rules actually mean. By the end, you’ll be able to check your own wall in 5 minutes.

What Are Solar Battery Clearance Requirements?

Clearance requirements are the minimum safe distances a home battery must sit from things like windows, doors, gas fittings, ceilings, and other appliances. They come from AS/NZS 5139:2019, the national rulebook installers must follow when fitting a battery in an Australian home.

In plain terms, the standard makes sure that if anything ever went wrong, the battery is positioned to minimise risk to the people inside and to give everyone a safe way out. Clearances add a second layer of safety on top of the battery’s own protections, keeping heat away from your walls and openings and your exists clear. The standard covers where a battery can go, how much space must surround it, and what kind of surface it can be mounted on. Your installer is legally required to follow it, and a compliant installation is also a condition of receiving the federal battery rebate.

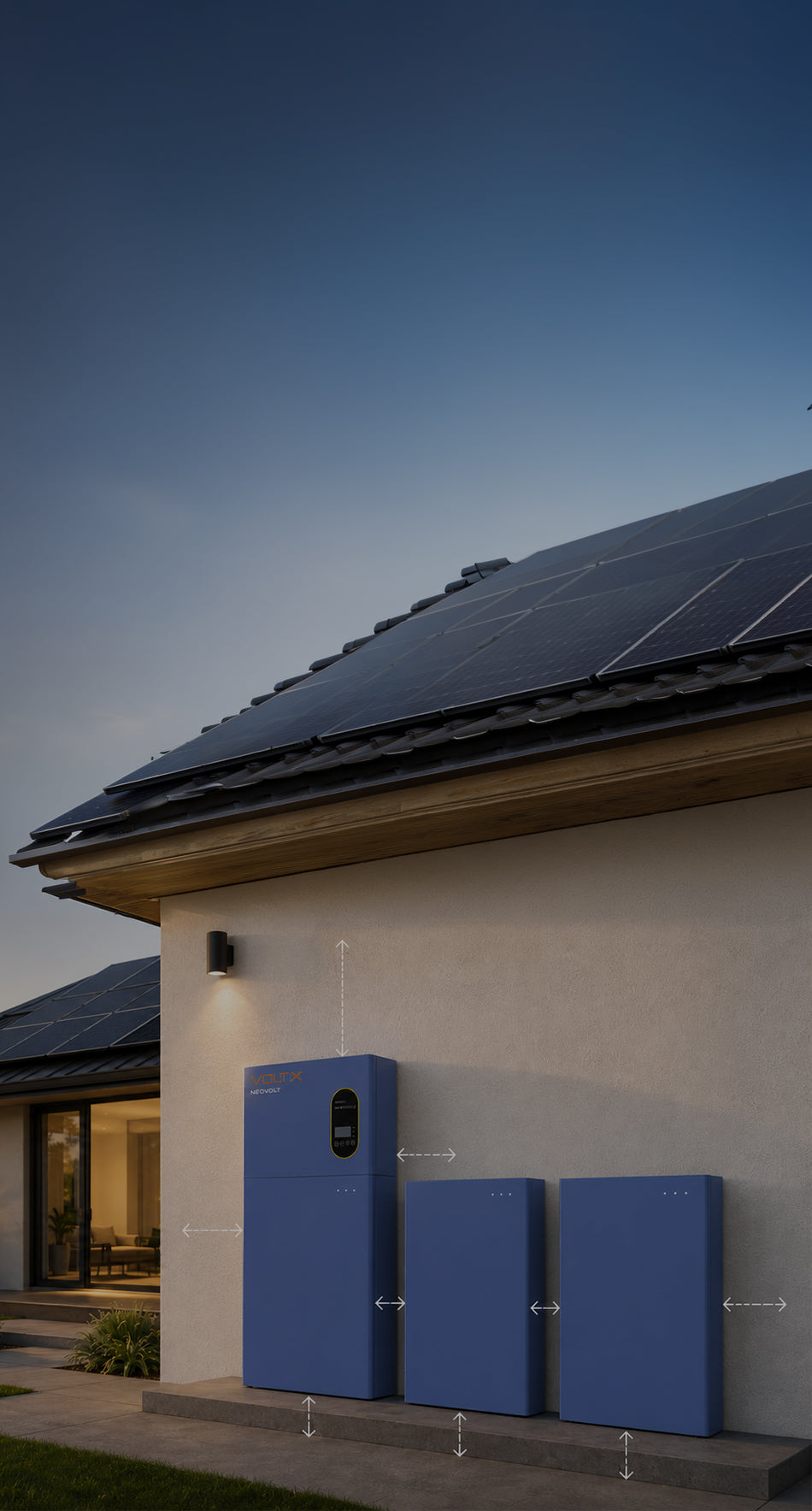

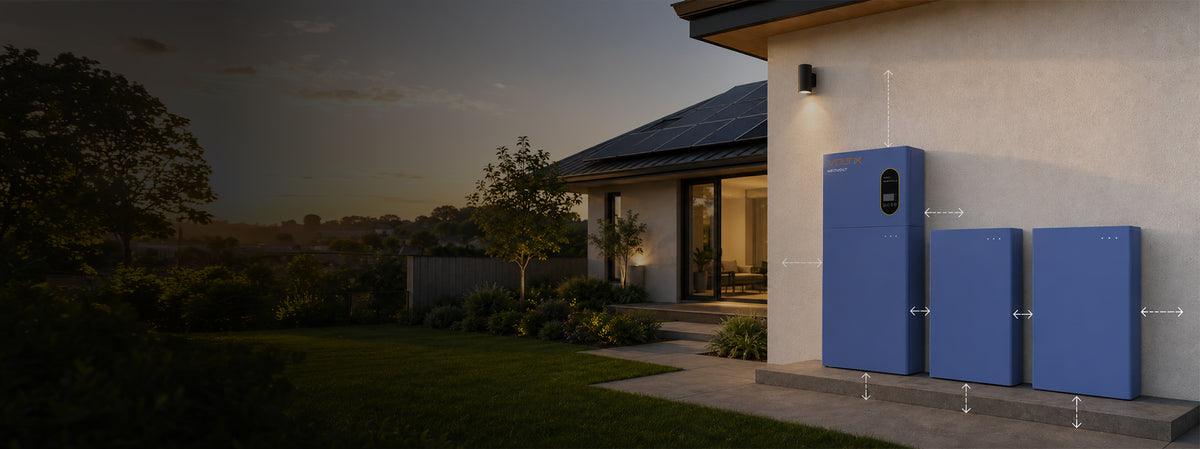

The Key Clearance Distances at a Glance

While exact figures vary by product and site, the standard residential clearances generally look like this:

Distance Measured from the battery What must be kept clear
900 mm Above the top of the battery  Combustible ceilings, windows, and vents to living areas, other appliances, and other battery units
600 mm Either side of the battery  Windows, doors, exits, air-conditioners, power points, and non-combustible walls
1500 mm Around the gas bottle  Gas bottles and gas hot-water systems

Think of these gaps as a safety buffer. The 900 mm above keeps heat and any potential flame away from ceilings and openings; the 600 mm to the sides keeps the battery clear of ignition sources and escape routes; and the larger gas clearance reflects the extra caution gas fittings require.

Your battery’s manufacturer may also set its own clearances. Where they differ from the standard, the stricter figure applies. A qualified installer confirms the precise figures for your specific battery.

Where a Battery Can and Can’t Go

Australian rules divide your home into habitable rooms and non-habitable rooms. This distinction is what decides where your battery can go, because a battery cannot be installed in a habitable room. Beyond that, batteries also can’t sit in roof spaces, wall cavities, under stairs, or anywhere that blocks an exit.

Habitable Rooms

These are bedrooms, living rooms, lounges, kitchens, studies; anywhere used for everyday living. A garage used as a gym, home office, or rumpus room may also count as habitable, so think about how you actually use the space.

Non-Habitable Rooms

These are garages, laundries, storerooms, and the like. One useful exception: a battery can sit closer than 600 mm to an opening wider than 900 mm, such as a garage door, as long as there’s at least 1 m of clear space for people to get past. This was added to the standard in Amendment 1 and applies nationwide.

Ideal Installation Location

The ideal home for a solar battery is usually a garage wall or an external wall with a non-habitable room behind it, with good ventilation and shelter from direct sun and weather.

The best spots are shaded, south-facing walls or under eaves. Afternoon sun can reduce a battery’s capacity and lifespan, and many manufacturers specify a shaded location, so check yours. If the wall backs onto a living area, extra shielding is required (see below).

Combustible vs Non-Combustible Walls (And Why It Matters)

The surface your battery mounts on matters because in the rare event that a battery overheats, the wall behind it shouldn’t be able to catch or spread fire. That’s the whole reason this rule exists.

Non-Combustible

Materials like brick, concrete, masonry, or compressed cement sheeting can have the battery fixed straight to them with standard clearances.

Combustible

Materials like timber, plywood, or plasterboard, common on weatherboard homes, need a non-combustible backing board, such as fire-rated cement sheet, fitted between the battery and the wall. The same applies when the wall backs onto a timber-framed living area.

The barrier typically extends about 600 mm past each side of the battery and 900 mm above it, wrapping around a corner or ceiling where needed.

This isn’t a deal-breaker or a sign your home is unsuitable. It’s a straightforward, inexpensive step your installer builds into the plan. The point is simply to add a protective barrier, so the wall itself never becomes part of a problem.

Will My Home Qualify? A Simple Walk-Around You Can Do Today

You don’t need any technical knowledge to get a feel for whether your home is battery-ready. Take a walk around and look for a spot that ticks these boxes:

Check What to look for Measured (Y/N)
Wall A garage or external wall, ideally with a non-habitable room behind it
Sides At least 600 mm from windows and doors that open into living areas
Above Nothing within 900 mm above: no habitable-room window or combustible ceiling
Gas At least 1,500 mm from gas bottles (more if refilled by tanker) and 600 mm from a gas hot-water system
Weather Sheltered from rain and out of direct afternoon sun
Access Clear of walkways and exits
Vehicles In the garage or near the driveway: room for a protective bollard so a car can’t bump it

If you can picture a spot that roughly fits, that’s a very good sign. And if nothing seems obvious, don’t rule your home out—creative configurations solve most tight situations, which is exactly what a professional assessment is for.

Already Have Solar? What Retrofit Homes Need to Know

Many VoltX Energy customers already have rooftop panels and simply want to add storage. If that’s you, the clearances apply to the new battery just as they would for a fresh install. The good news is that your existing solar system doesn’t have to be torn up to comply.

The main thing to watch is the area around your switchboard and meter box, which can get crowded in an established home. A battery and its inverter need their own clear space, away from existing appliances and power points. Two other things are worth checking early:

This is rarely a problem, but it’s the kind of detail worth confirming early so your quote reflects the real layout of your home rather than a generic assumption.

Room to Grow: Modular Systems and Future EV Plans

If you think you might charge an electric vehicle down the track, or add more storage as your household needs change, clearances are worth thinking about now. A modular battery—one built from stackable units, like the VoltX™ Neovolt Home Battery System—lets you start with what you need and expand later.

When units are stacked side-by-side or front-to-back, each still needs minimum clearance from the next (generally around 300 mm to the sides and 900 mm above the top unit). Planning the location with a little extra room above and beside the battery means you can scale up in the future without having to relocate the whole system.

My Spot Doesn't Comply—What Now?

A spot that misses a clearance can usually be fixed. When it isn’t checked upfront, though, homeowners can face additional costs from mid-install variations, delays, or extra work that wasn’t priced in. These are the common fixes, and each should appear as its own line item on your quote:

  • Fire-rated barrier: a backing board for combustible walls or walls that back onto a living area
  • Protective bollard: for a battery near where a car parks or on a driveway
  • Shroud or enclosure: shade and weather protection, built to keep the 900 mm clearance above
  • Relocation: moving the battery to a different wall that already meets the clearances
  • Longer cable run: needed when the best spot is further from your switchboard

VoltX Energy discusses your installation plan before any work begins. If something unexpected comes up on installation day, we’ll talk it through with you and agree on any changes before going ahead. Installations are carried out by SAA-accredited technicians.

What a Site Assessment Checks

The walk-around above gives you a good sense of your options, but you shouldn’t have to interpret a national standard yourself. That’s the job of a good battery system installer. A professional site assessment checks:

  • The clearances around your preferred spot
  • Your wall material and what room sits behind it
  • The distance and cable route to your switchboard
  • Whether your existing solar inverter is compatible
  • Sun exposure, weather protection, and ventilation
  • Clear access for walkways, exits, and vehicles

You then get a clear plan for the safest compliant location before you commit a cent.

Find the Right Spot for Your Home with VoltX Energy

Solar battery clearance requirements can sound daunting, but they’re really just sensible safety measures—minimum distances that protect your home and family. The vast majority of Australian homes can accommodate a battery with a bit of planning, and the few tricky cases almost always have a solution.

The best location genuinely depends on your individual home: its walls, layout, and how you plan to use your energy now and in the future. Understanding the basics puts you in a strong position, but you don’t have to work it all out alone.

The simplest next step is to let an expert confirm what’s possible. Book a consultation with VoltX Energy, and our team will identify the safest, most suitable location for your battery, walk you through the plan, and answer every question along the way.

Frequently Asked Questions

The safety principles come from the same national standard, AS/NZS 5139:2019, so the rules about habitable rooms, ventilation and fire-safe surfaces apply to every brand. The exact distances, however, can vary slightly between products, because each battery has its own manufacturer specifications and thermal characteristics. This is why a spot that suits one battery may need adjusting for another, and why your installer confirms the precise clearances for the specific battery you choose.

As a general guide, a wall-mounted home battery needs roughly 600 mm clear to either side and 900 mm above, plus a suitable non-combustible wall or backing board behind it. Larger clearances apply near gas fittings. The battery unit itself is usually about the size of a small hot-water system, so most homes have more than enough room; the space is more about safe positioning than sheer size.

It's rarely a dead end. There's almost always a workable alternative: a different wall, an outdoor location, a fire-rated backing board to open up a tighter spot, or a modular battery configuration that fits a smaller footprint. A professional site assessment is the best way to find the right solution, and it's exactly the kind of challenge VoltX Energy's team solves every day.

Yes. A garage wall is one of the most common and suitable locations, since a garage is a non-habitable space with good access and ventilation. The main consideration is protection from vehicles: if the battery sits near where a car parks or a driveway, a protective bollard may be added so it can't be struck.

Yes, many batteries are rated for outdoor installation and an external wall is often an ideal spot. The key is choosing a location that's sheltered from direct sun and rain, well-ventilated, and clear of windows, doors and gas fittings. Your installer will confirm your chosen battery's weather rating and position it so it stays protected and performs well year-round.

Generally, a battery should sit at least 600 mm to the side of, and 900 mm below, any window or door that opens into a living area, so that heat and any potential hazard is kept away from openings and escape routes. Windows and doors to non-habitable rooms allow more flexibility. Your installer confirms the exact figures for your battery and home.

The core standard, AS/NZS 5139:2019, applies nationwide, so the fundamentals are consistent whether you're in NSW, VIC, QLD, SA or the ACT. Some states and territories add their own requirements or interpret certain rules differently, particularly around gas clearances and bushfire zones. A locally experienced installer will know exactly how the rules apply in your area, so you don't have to track the differences yourself.
